Modular Stage Support Systems for Demanding Events

Modular Solutions for Event Staging and Performance Support

#

Sucoot’s Ring Lock Stage Scaffolding is engineered to provide robust, adaptable support for a wide range of events, from music festivals and sports competitions to large-scale live productions. With a focus on modularity, rapid assembly, and certified safety, this system is designed to meet the demands of high-performance environments where reliability is essential.

Key Features

#

1. Quick and Efficient Assembly
   The system utilizes intuitive wedge-head connections, minimizing the need for specialized tools. Crews can assemble scaffolding rapidly and reliably, with the added benefit of preassembling entire towers at ground level for safer, faster installation.

2. Seamless Integration with Event Equipment
   The scaffolding is compatible with trusses, PA towers, roof systems, LED walls, and lighting rigs, providing a dependable structural backbone for multimedia-rich stage environments.

3. Certified Safety and Performance
   Sucoot’s stage scaffolding meets international standards, including EN 12810-1 and ANSI/ASSE A10.8, ensuring both safety and performance in demanding applications.

Technical Specifications

#

• Verticals (Main Support):

  • Material: STK500 steel, hot-dip galvanized
  • Lengths: 1.0m, 1.5m, 2.0m, 3.0m
  • Pipe: Ø48.6mm, thickness 3.2mm
  • Distance between rings: 500mm

• Horizontals (Force Distribution):

  • Material: STK500 steel, hot-dip galvanized
  • Lengths: 0.9m, 1.2m, 1.5m, 1.8m, 2.4m (other sizes available)
  • Pipe: Ø48.6mm, thickness 3.2mm

• Diagonals (Stability):

  • Material: STK500 steel, hot-dip galvanized
  • Lengths: 1.2m×1.5m, 1.5m×1.5m, 1.8m×1.5m (other sizes available)
  • Pipe: Ø48.6mm, thickness 3.2mm

Certifications and Testing

#

• Certifications:

  • ISO-9001
  • EN 12810-1
  • ANSI/ASSE A10.8

• Testing Reports:

  • Material Certification
  • Magnetic Particle Test
  • Loading and Tension Test
  • Third-Party Professional Lab Verification

System Advantages

#

• Fast Assembly, Less Labor: Modular design and wedge-head connections allow for quick setup with minimal labor. Towers can be preassembled and lifted into place, reducing work at height and installation time.

• High Load Capacity and Durability: Constructed from high-tensile STK500 steel and hot-dip galvanized, the system offers long-term corrosion resistance and can maintain stable load-bearing performance for over 20 years when used correctly.

• Engineered for Real-World Stage Applications: Supports flat stages, tiered seating, vertical LED walls, and suspended lighting or sound systems. Sucoot’s design team can provide custom structural drawings to ensure safety and creativity for each project.

Project Highlights

#

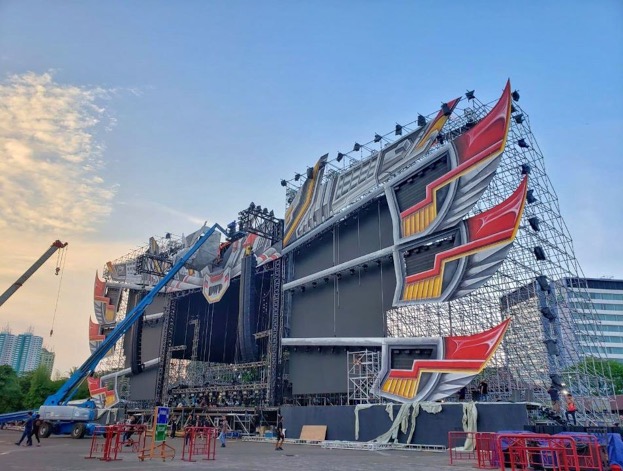

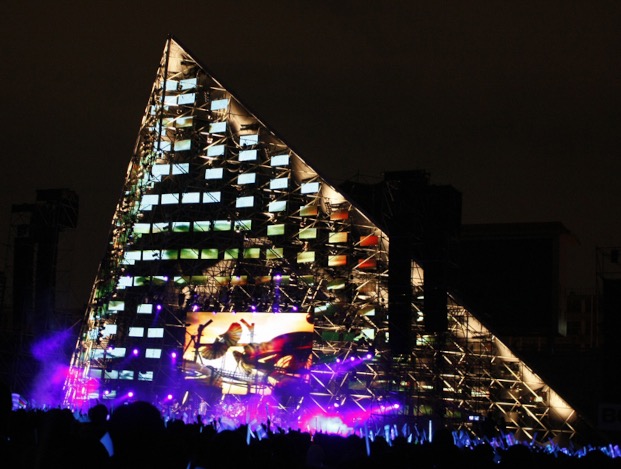

Djakarta Warehouse Project Nu Skin Bali Mayday Concert – Pyramid Stage Structure

Industry Applications

#

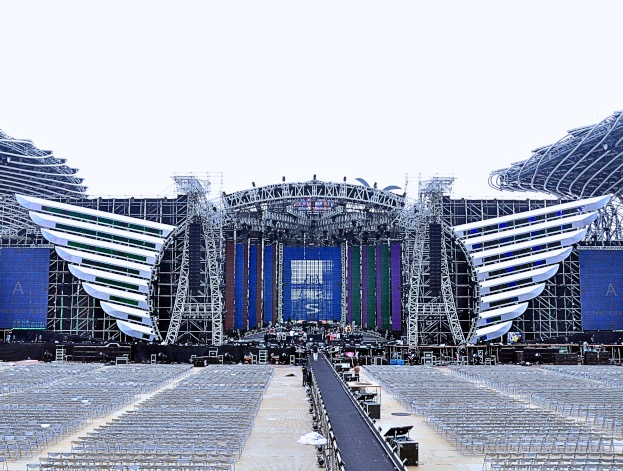

Staging and Art

Related Products

#

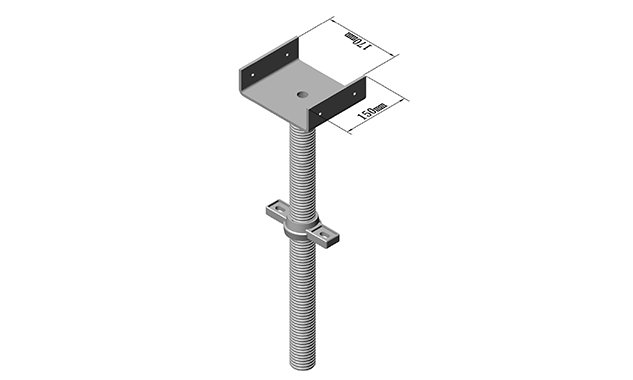

Base Beam U-Head Jack Base Joint Pin Jack Base

Further Information

#

For detailed specifications, certifications, and custom solutions, refer to the catalog or contact us for tailored support.
