Optimizing Access and Efficiency with Light Duty Facade Scaffolding

Enhancing Construction Access with Modular Light Duty Scaffolding

#

SUCOOT’s light duty facade scaffolding system is engineered to provide reliable, efficient, and safe access for a wide range of construction and maintenance tasks. Designed for working access and facade applications, this system offers a cost-effective and highly mobile solution that streamlines setup and dismantling, while maintaining a strong focus on safety and structural integrity.

Key Features of the Light Duty Ring Lock System

#

1. Lightweight and Structurally Reliable
   The system utilizes high-tensile STK500 steel, achieving an optimal balance between reduced weight and robust strength. Lightweight components minimize on-site handling fatigue and enhance operational efficiency, without compromising on safety or stability.

2. Fast-Locking Ring Node Design
   Precision-manufactured ring nodes enable secure and rapid assembly through wedge-head connections. This design ensures accurate angular alignment, reduces installation errors, and is particularly suited for time-sensitive or large-scale facade projects.

3. Flexible, Professionally Engineered Solutions
   SUCOOT’s engineering team leverages the modular system’s flexibility to deliver tailored scaffolding solutions for diverse site conditions. From layout planning to structural safety, each setup is optimized for efficiency, adaptability, and stability—even in complex environments.

System Components and Specifications

#

• Verticals: Serve as the main load-bearing structure, connecting via joint pins and locking to horizontals and diagonals with wedge pins through the ring.

  • Material: High-strength STK500 steel
  • Finish: Hot-dip galvanized
  • Tube Dimensions: Φ48.6mm x t:2.5mm
  • Available Heights: 1.0 m, 1.5 m, 2.0 m, 3.0 m
  • Ring Spacing: 450mm / 500mm

• Horizontals: Distribute loads evenly and enhance lateral stability, providing crosswise bracing between verticals.

  • Material: High-strength STK500 steel
  • Finish: Hot-dip galvanized
  • Available Lengths: 0.9m, 1.2m, 1.5m, 1.8m, 2.4m
  • Custom Sizes: Available upon request
  • Tube Dimensions: Φ42.7mm x t:2.3mm

• Diagonals: Reinforce the frame structure and minimize distortion under heavy or eccentric loading.

  • Material: High-strength STK500 steel
  • Finish: Hot-dip galvanized
  • Standard Sizes: 1.2m × 2.0m, 1.5m × 2.0m, 1.8m × 2.0m
  • Custom Sizes: Available upon request
  • Tube Dimensions: Φ42.7mm x t:2.3mm

Certifications and Testing

#

• ISO 9001: Quality management system certified for consistent production, traceability, and reliability.
• EN 12810-1: Meets the structural and safety requirements of Europe’s leading modular scaffolding standard, replacing BS 1139-5.
• ANSI/ASSE A10.8: Compliant with U.S. jobsite safety codes for strength, stability, and fall protection.

Testing Procedures:

• Material certification ensures all steel meets required grade, strength, and composition standards.
• Magnetic particle inspection (certified by SGS) detects micro-cracks at weld points for structural safety.
• Loading and tension tests validate real-world load performance.

Versatility Across Work Environments

#

Light duty scaffolding platforms and access towers are particularly suited for tasks requiring agility and adaptability:

• Painting and Maintenance: Mobile tower scaffolds allow painters and maintenance crews to access various points efficiently, reducing assembly/disassembly time and enhancing safety.
• Electrical and Plumbing Work: Provides a stable and secure platform for professionals working at heights.
• Light Construction Projects: The lightweight design and quick setup make these platforms invaluable for projects where speed and efficiency are priorities.

Advantages of SUCOOT® Light Duty Scaffolding

#

• Cost-Effective: Easy assembly/disassembly and stable design save time and costs, making it ideal for small to medium-sized projects with budget considerations.
• Easy Maneuverability: Mobile tower scaffolds simplify access to different worksite areas, reducing physical strain on workers.
• Quick Setup and Dismantling: Enables prompt commencement of work, crucial in fast-paced construction environments.
• Safety-Oriented: Designed to provide stability and support for workers operating at heights.

Project Applications

#

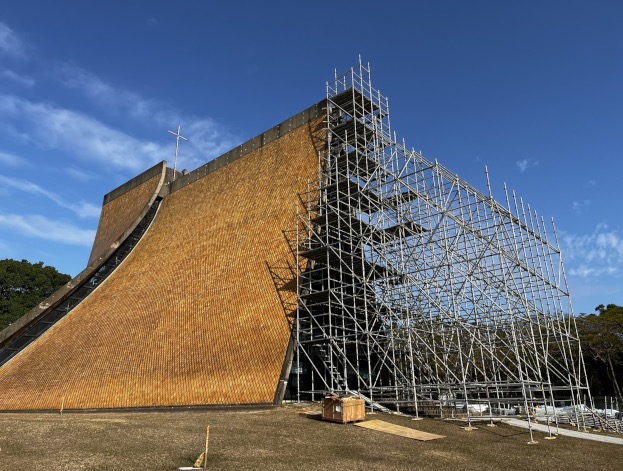

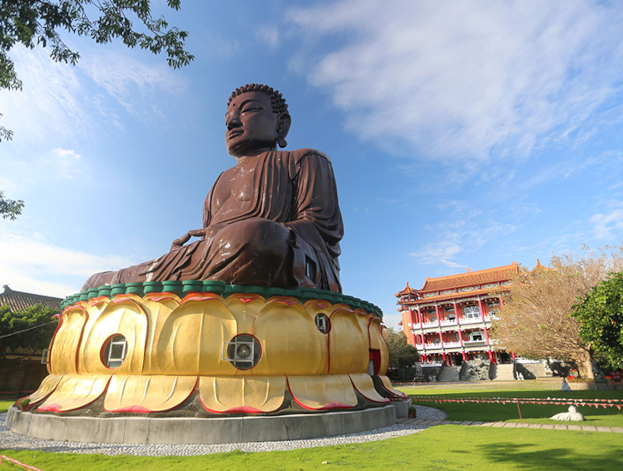

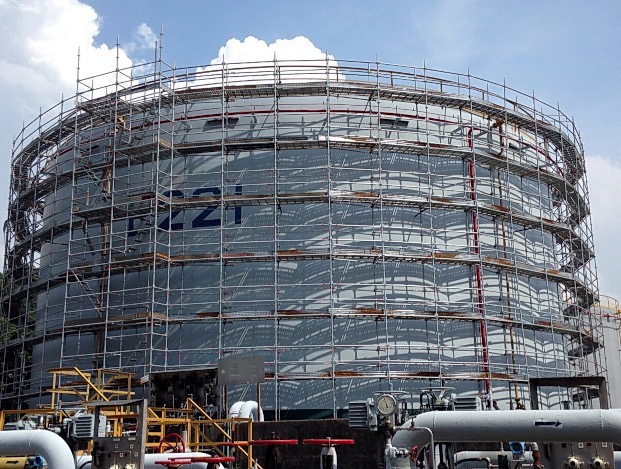

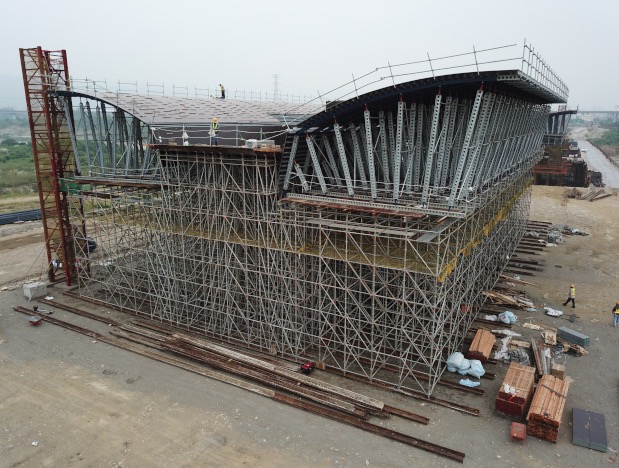

Taichung Central Taiwan Science Park South Access Road – Dajia River Bridge & South Approach Project Petrochemical Storage Tank – Circular Scaffolding Installation Mailiao Refinery – 142 m Flare Stack Maintenance Scaffolding China Steel Power Plant – Chimney Construction Project The Luce Chapel Restoration – National Historic Monument of Taiwan Baguashan Mountain Buddha – Restoration Project

Industry Applications

#

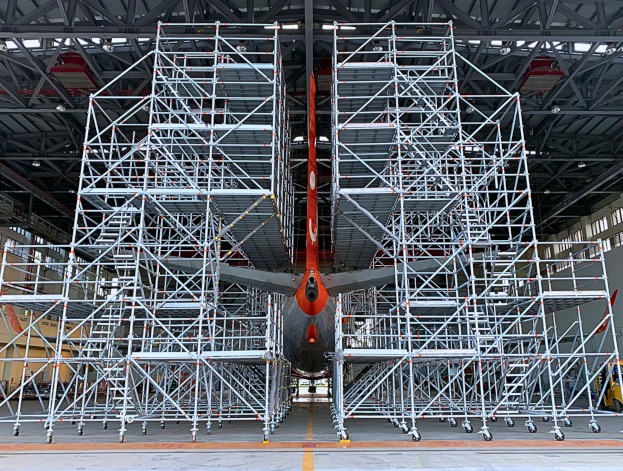

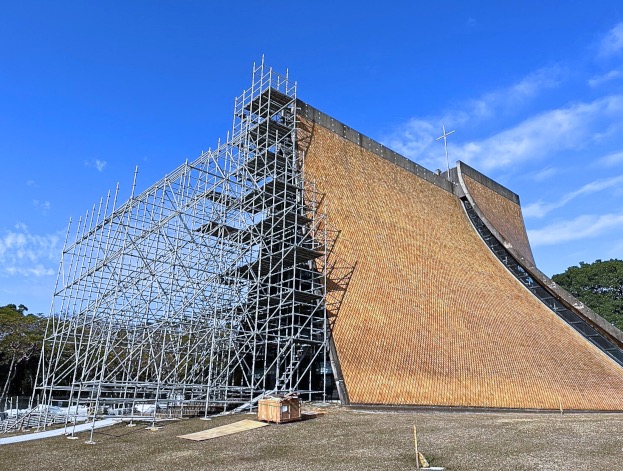

Aircraft Maintenance Cultural Facilities & Heritage Restoration Petrochemicals Commercial

Related Products

#

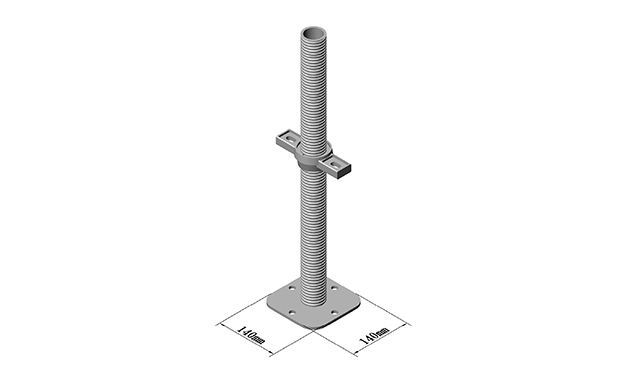

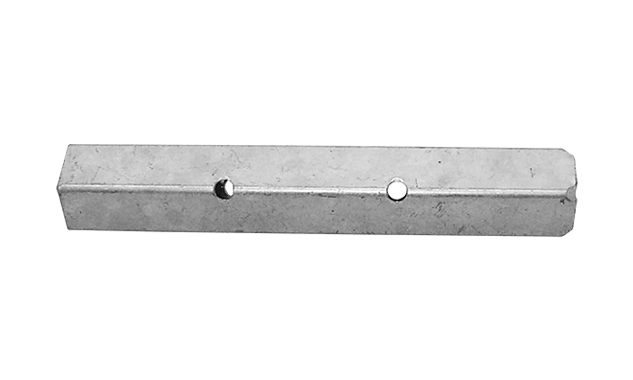

Jack Base Joint Pin

For more information or to discuss your project requirements, please contact us.
