Modular Column Formwork: Structure, Components, and Applications

#

Column formwork serves as a temporary mold designed to shape and support vertical concrete columns until the concrete sets and achieves full strength. This system is essential for ensuring the stability and precision of columns in a wide range of construction projects.

Structure and Key Components

#

• Tie Rod and Wing Nut System
  The core of the system is the Form Tie System, which utilizes tie rods and wing nuts. This fastening setup locks the formwork in place, distributes lateral concrete pressure, and stabilizes the bearer system under load. It ensures even pressure distribution and secure connections for optimal load-bearing performance.

• Base Beam & Top Beam as Bearers

  • Top Beams: These beams take on the main load, transferring and spreading the weight of fresh concrete.
  • Base Beams: They reinforce alignment and maintain the stability of the column formwork during each concrete pour.

• Specialized Accessories
  A range of accessories is available to facilitate setup, enhance fastening safety, and improve alignment precision for column formwork.

Advantages of Modular Column Formwork

#

• Reusable Components: The modular design allows for repeated use across multiple projects, reducing material costs and minimizing waste.
• Engineered Safety and Stability: All parts are rigorously tested to withstand high concrete pressures, providing reliable performance on site.
• Efficient Assembly: The system is designed for quick assembly and disassembly, enabling crews to focus on concrete pouring and keeping projects on schedule.

Versatility of the SUCOOT Base Beam/Soldier Beam

#

The Base Beam/Soldier Beam is engineered for a variety of applications:

1. Bridge Viaducts: Functions as a primary or secondary bearer for inner/outer formwork and supports wing forms.
2. Slab, Beam, and Wall Formwork: Suitable as a main or secondary bearer in slab, beam, and wall formwork.
3. Large-Span Structures: Accommodates large spans, offering cost savings in formwork support and concrete pouring.
4. Lateral Support: Provides stable lateral support at any height, ensuring structural integrity.

Application Areas

#

The modular column formwork system is ideal for:

• Infrastructure Projects: Bridges, viaducts, culverts, tunnels, and other large-scale developments.
• Industrial Facilities: High-tech factories, steel mills, and power plants.
• Commercial and Residential Construction: Robust formation of columns, walls, and slabs in various building types.

Project Highlights

#

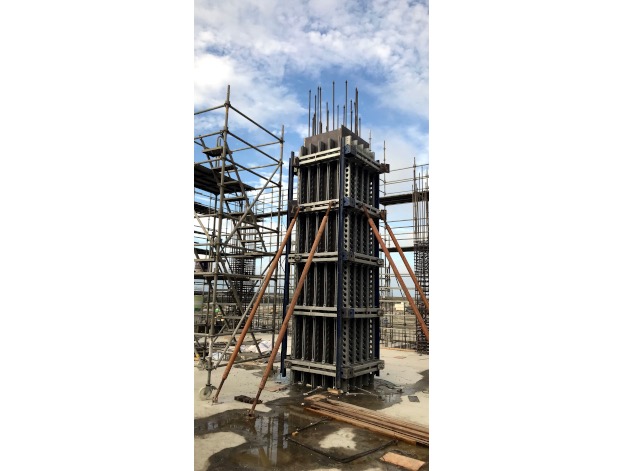

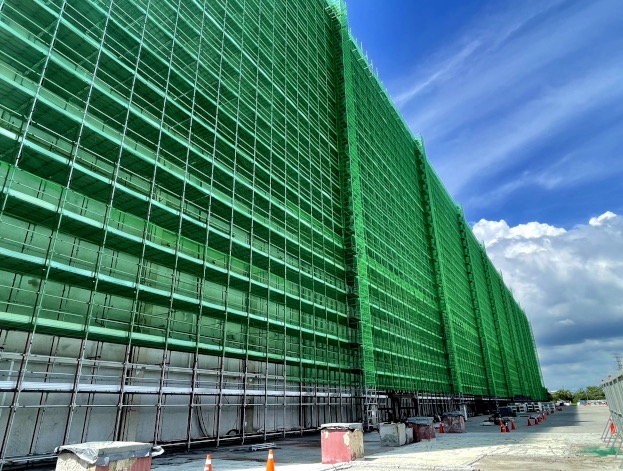

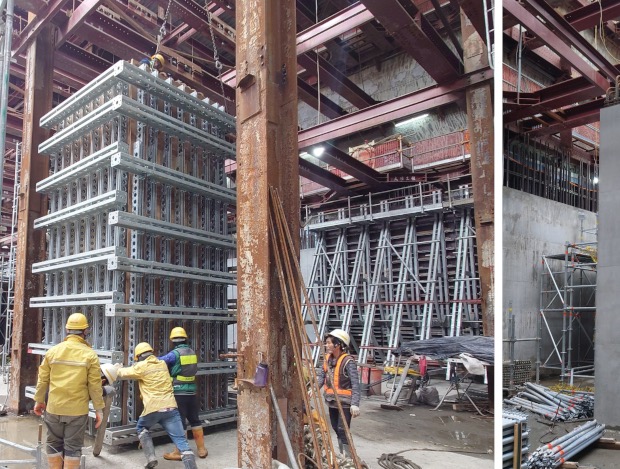

Underground Railway/MRT High-Tech Factories

Industry Applications

#

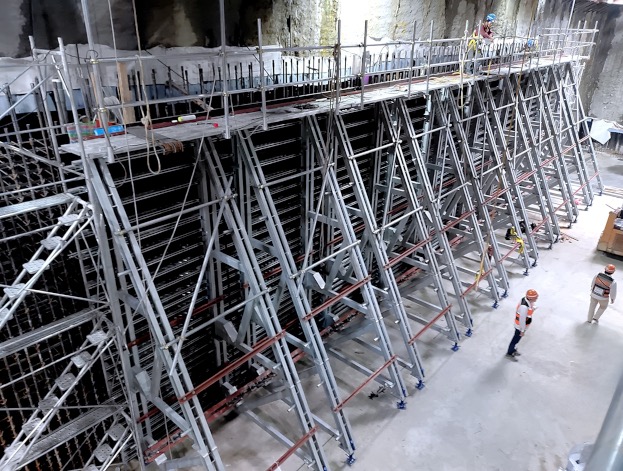

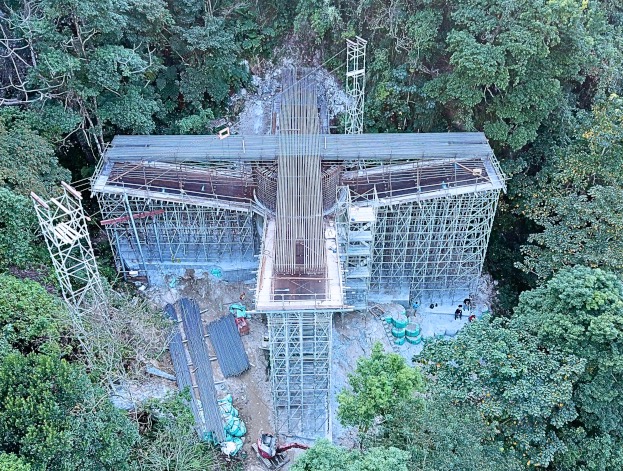

Civil engineering High-tech Energy

Related Products

#

Base Beam Top Beam Form Tie System

For further details or to discuss your project requirements, please contact us.
